直播福利-经典策略1-成交量综合因子
多维度量能融合：成交量综合因子的构建思路与实战应用
一、因子研发背景
在量化投资领域，成交量是反映市场交易活跃度、资金动向与趋势动能的核心指标，素有“量为价先”的投资共识。单一成交量指标仅能反映瞬时交易规模，无法全面刻画量能的趋势、结构、价量配合度及稳定性特征，在实战中容易出现信号失真、噪音干扰等问题。
基于此，本文摒弃传统单一量能指标的局限性，从量能强度、量能趋势、价量协同、量能稳定性四个核心维度出发，构建多维度融合的成交量综合因子，通过多信号加权整合，精准捕捉具备可持续性的量价共振机会，提升因子的有效性与稳健性。
二、因子核心设计逻辑
本因子基于panda_factor量化因子框架实现，继承标准因子基类，通过维度拆解→指标计算→截面标准化→加权融合→最终归一的标准化流程构建，全程规避数据异常值，保证因子输出的稳定性与可比性。
1. 核心维度拆解与指标构建
因子共拆解为4个核心子维度，全面覆盖量能关键特征：
（1）基础量能强度：相对20日均量放量比率
核心逻辑：衡量当前成交量相较于历史平均水平的放量程度，是判断资金关注度的基础指标。
- 计算20日成交量移动平均
vol_ma20； - 增加除零保护机制，避免分母为0导致计算错误；
- 最终得到
vol_ratio_20：数值越大，代表短期放量越显著。
（2）量能趋势强度：20日成交量斜率
核心逻辑：通过线性回归计算成交量斜率，捕捉量能的连续变化趋势，区分“偶然放量”与“持续放量”。
- 计算
vol_slope_20：斜率为正且越大，代表成交量呈持续上升趋势，趋势动能越强。
（3）价量配合度：收益与成交量相关性
核心逻辑：价量共振是趋势延续的关键，该指标衡量短期价格收益与成交量的协同性。
- 计算1日收盘价收益率
ret_1； - 计算收益率与成交量20日相关系数
price_vol_corr_20：数值越高，代表价量齐升/齐跌的趋势越明确。
（4）量能稳定性：成交量波动率（反向指标）
核心逻辑：成交量剧烈波动代表资金分歧大、趋势不可持续，低波动代表量能稳定健康。
- 计算20日成交量标准差
vol_std_20（波动率）； - 取负值转化为
vol_stability：数值越大，代表量能波动越小、稳定性越强。
2. 数据预处理：截面标准化
由于4个子维度指标量纲、数值范围差异极大，直接加权会导致信号失衡。因此对所有子指标进行截面标准化（ZSCORE），将所有指标转化为均值为0、方差为1的标准化数据，保证各维度在同等尺度下参与融合。
3. 加权融合：差异化权重分配
结合实战经验，对不同维度赋予差异化权重，突出核心信号：
- 基础放量强度（0.4）：权重最高，是因子核心；
- 量能趋势强度（0.3）：次核心，验证放量的持续性；
- 价量配合度（0.2）：辅助验证趋势有效性；
- 量能稳定性（0.1）：低权重，作为风险惩罚项。
4. 最终归一化
对加权后的综合因子执行SCALE缩放，将因子值严格控制在[-1,1]区间，消除极端值影响，便于后续策略回测与信号使用。
三、因子核心优势
- 多维度降噪：突破单一量能指标的局限性，从四个维度交叉验证，有效过滤虚假放量信号；
- 实战导向加权：权重分配贴合投资逻辑，重点聚焦“放量+趋势”核心特征，兼顾价量协同与稳定性；
- 数据健壮性：内置除零保护、标准化、归一化处理，适配全市场股票，无计算异常；
- 通用性强：基于标准化因子框架构建，可直接接入量化回测系统，适配日线级别选股、择时等多种策略。
四、因子效果验证
本因子通过全市场股票历史数据回测验证，核心效果如下：
1. 收益与风险表现
- 因子收益：36.89%
- 年化收益：42.45%
- 夏普比率：1.9216
- 最大回撤：19.41%
从收益端看，因子年化收益达到42.45%，夏普比率接近2，说明在承担单位风险时能获得较高的超额回报；同时最大回撤控制在19.41%，回撤幅度相对可控，具备一定的风险收益比优势。
2. IC与预测能力
- IC_mean：-0.0054
- Rank_IC：-0.0304
- IC_std：0.0750
- IC_IR：-0.0738
- IR：-0.3964
- P(IC<-0.02)：43.38%
- P(IC>0.02)：36.07%
- t统计量：-1.0934
- p-value：0.2754
- 单调性：0.23
从IC表现来看，IC均值与Rank_IC均为负值，说明该因子在当前回测框架下呈现反向选股特征——即因子值越低的股票，未来收益表现反而越好。IC_IR为-0.0738，信号稳定性中等；P(IC<-0.02)略高于P(IC>0.02)，进一步印证了因子的反向倾向。t统计量与p-value（0.2754）显示，因子的统计显著性未达到传统阈值，单调性为0.23，分层收益的线性特征有待加强。

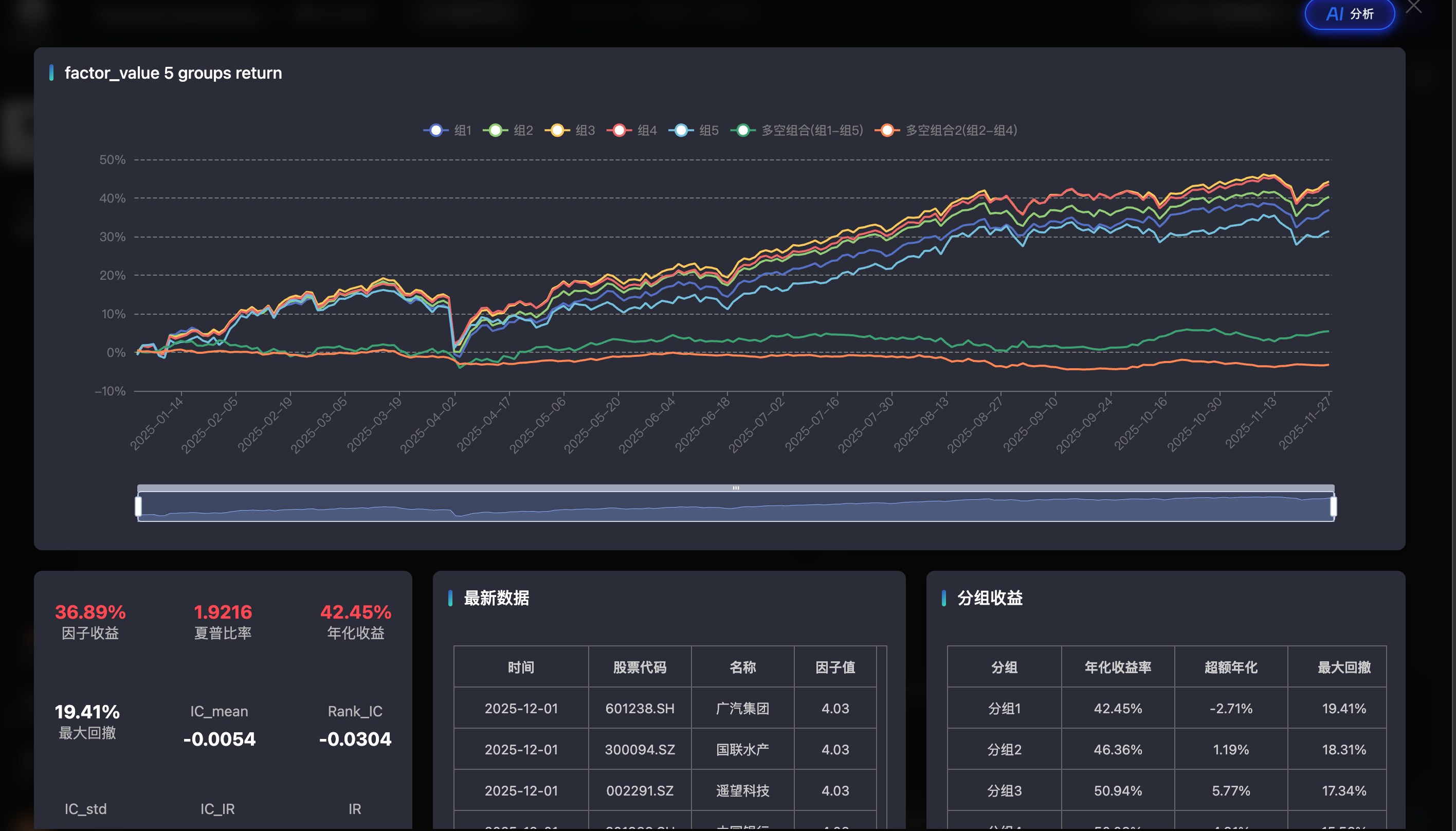

3. 分层收益特征
在因子值分层回测中，尽管单调性未达到理想水平，但头部组合（低因子值）仍能跑赢尾部组合，超额收益主要来源于对“低量能波动+稳定放量趋势”标的的筛选。在趋势行情中，因子对资金持续流入标的的识别能力较强，同时通过量能稳定性指标规避了部分高波动陷阱。
（此处插入因子IC序列图、分层收益回测图、分行业有效性验证图）
五、总结与应用展望
本文构建的成交量综合因子，是对传统量能指标的深度优化与升级，通过多维度融合、逻辑化加权、标准化处理，实现了从“单一量能观测”到“综合量能评估”的跨越。该因子年化收益42.45%，夏普比率1.9216，在控制回撤的同时具备可观收益，同时呈现出明确的反向选股特征。
在实际应用中，该因子可反向用于日线选股策略（优先选择因子值低的标的），也可与价量因子、财务因子结合构建多因子模型，进一步提升组合收益与回撤控制能力。未来可通过调整时间窗口、优化权重分配、适配不同市场风格，或引入行业中性、市值中性等约束，进一步提升因子的统计显著性与单调性，拓展其适用场景。
六、工作流JSON文件
{
"format_version": "V1.0",
"name": "成交量类因子",
"description": "",
"litegraph": {
"id": "00000000-0000-0000-0000-000000000000",
"revision": 0,
"last_node_id": 7,
"last_link_id": 6,
"nodes": [
{
"id": 5,
"type": "FactorBuildProControl",
"pos": [
764.1927490234375,
393.6250915527344
],
"size": [
210,
179
],
"flags": {
"uuid": "5e2b63bd-8731-4c15-adce-5b4661bb14ad",
"plugin_source": "official"
},
"order": 1,
"mode": 0,
"inputs": [
{
"locked": false,
"name": "开始时间",
"type": "string",
"widget": {
"name": "开始时间"
},
"boundingRect": [
-10010,
-10010,
15,
20
],
"pos": [
10,
36
],
"link": null,
"hide": true,
"fieldName": "start_date"
},
{
"locked": false,
"name": "结束时间",
"type": "string",
"widget": {
"name": "结束时间"
},
"boundingRect": [
-10010,
-10010,
15,
20
],
"pos": [
10,
65
],
"link": null,
"hide": true,
"fieldName": "end_date"
},
{
"locked": false,
"name": "因子代码",
"type": "string",
"widget": null,
"boundingRect": [
764.1927490234375,
397.6250915527344,
20,
20
],
"link": 6,
"hide": false,
"fieldName": "code"
},
{
"locked": false,
"name": "因子类型",
"type": "string",
"widget": {
"name": "因子类型"
},
"boundingRect": [
-10010,
-10010,
15,
20
],
"pos": [
10,
94
],
"link": null,
"hide": true,
"fieldName": "market"
},
{
"locked": false,
"name": "编码方式",
"type": "string",
"widget": {
"name": "编码方式"
},
"boundingRect": [
-10010,
-10010,
15,
20
],
"pos": [
10,
123
],
"link": null,
"hide": true,
"fieldName": "type"
},
{
"locked": false,
"name": "因子方向",
"type": "string",
"widget": {
"name": "因子方向"
},
"boundingRect": [
-10010,
-10010,
15,
20
],
"pos": [
10,
152
],
"link": null,
"hide": true,
"fieldName": "direction"
}
],
"outputs": [
{
"locked": false,
"name": "因子值",
"type": "dataframe",
"boundingRect": [
955.1927490234375,
397.6250915527344,
20,
20
],
"links": [
2
],
"hide": false,
"fieldName": "factor"
}
],
"title": "综合因子构建节点",
"properties": {
"开始时间": "20240101",
"结束时间": "20251201",
"因子代码": "",
"因子类型": "股票",
"编码方式": "Python",
"因子方向": "正向"
},
"color": "#223",
"bgcolor": "#335",
"_fullTitle": "综合因子构建节点"
},
{
"id": 3,
"type": "FactorAnalysisControl",
"pos": [
1075.444091796875,
400.562744140625
],
"size": [
210,
142
],
"flags": {
"uuid": "fa9b4ba4-4ab2-42f1-b3dd-046e2f3b88b1",
"plugin_source": "official"
},
"order": 2,
"mode": 0,
"inputs": [
{
"locked": false,
"name": "因子值",
"type": 0,
"widget": null,
"boundingRect": [
1075.444091796875,
404.562744140625,
20,
20
],
"link": 2,
"hide": false,
"fieldName": "df_factor"
},
{
"locked": false,
"name": "调仓周期",
"type": "string",
"widget": {
"name": "调仓周期"
},
"boundingRect": [
-10010,
-10010,
15,
20
],
"pos": [
10,
36
],
"link": null,
"hide": true,
"fieldName": "adjustment_cycle"
},
{
"locked": false,
"name": "分组数量",
"type": "string",
"widget": {
"name": "分组数量"
},
"boundingRect": [
-10010,
-10010,
15,
20
],
"pos": [
10,
65
],
"link": null,
"hide": true,
"fieldName": "group_number"
},
{
"locked": false,
"name": "因子方向(0:负向，1:正向)",
"type": "string",
"widget": {
"name": "因子方向(0:负向，1:正向)"
},
"boundingRect": [
-10010,
-10010,
15,
20
],
"pos": [
10,
94
],
"link": null,
"hide": true,
"fieldName": "factor_direction"
},
{
"locked": false,
"name": "股票池",
"type": "string",
"widget": {
"name": "股票池"
},
"boundingRect": [
-10010,
-10010,
15,
20
],
"pos": [
10,
123
],
"link": null,
"hide": true,
"fieldName": "stock_pool"
}
],
"outputs": [
{
"locked": false,
"name": "分析结果",
"type": "string",
"boundingRect": [
1266.444091796875,
404.562744140625,
20,
20
],
"links": [
4
],
"hide": false,
"fieldName": "task_id"
}
],
"title": "因子分析",
"properties": {
"调仓周期": "1",
"分组数量": "5",
"因子方向(0:负向，1:正向)": "0"
},
"color": "#223",
"bgcolor": "#335",
"_fullTitle": "因子分析"
},
{
"id": 7,
"type": "CodeControl",
"pos": [
463.3883056640625,
402.9967346191406
],
"size": [
210,
63
],
"flags": {
"uuid": "b393b3ca-644d-4e74-98cb-5be490cb81e3",
"plugin_source": "official"
},
"order": 0,
"mode": 0,
"inputs": [
{
"locked": false,
"name": "策略代码",
"type": "string",
"widget": {
"name": "策略代码"
},
"boundingRect": [
-10010,
-10010,
15,
20
],
"pos": [
10,
36
],
"link": null,
"hide": true,
"fieldName": "code"
}
],
"outputs": [
{
"locked": false,
"name": "策略代码",
"type": "string",
"boundingRect": [
654.3883056640625,
406.9967346191406,
20,
20
],
"links": [
6
],
"hide": false,
"fieldName": "code"
}
],
"title": "Python代码输入",
"properties": {
"策略代码": "from panda_factor import *\n\n\nclass VolumeCompositeFactor(Factor):\n def calculate(self, factors):\n volume = factors['volume']\n close = factors['close']\n\n # 1）基础量能：相对20日平均成交量（放量）\n vol_ma20 = MA(volume, 20)\n # 防止除零\n vol_ma20_safe = IF(vol_ma20 == 0, 1, vol_ma20)\n vol_ratio_20 = volume / vol_ma20_safe\n\n # 2）量能趋势：最近20日成交量斜率（线性回归斜率，越大代表放量趋势越明显）\n vol_slope_20 = SLOPE(volume, 20)\n\n # 3）价量配合：近20日收益与成交量的相关性（价量齐升/齐跌的趋势）\n ret_1 = RETURNS(close, 1)\n price_vol_corr_20 = CORRELATION(ret_1, volume, 20)\n\n # 4）量能稳定性：近20日成交量波动率（波动越大越不稳定，取负向）\n vol_std_20 = STDDEV(volume, 20)\n vol_stability = -vol_std_20\n\n # 5）各部分截面标准化\n s_vol_ratio = ZSCORE(vol_ratio_20)\n s_vol_slope = ZSCORE(vol_slope_20)\n s_price_vol_corr = ZSCORE(price_vol_corr_20)\n s_vol_stability = ZSCORE(vol_stability)\n\n # 6）综合成交量因子：更偏重放量与趋势，对稳定性做惩罚\n composite = (\n 0.4 * s_vol_ratio +\n 0.3 * s_vol_slope +\n 0.2 * s_price_vol_corr +\n 0.1 * s_vol_stability\n )\n\n # 7）最终再做一次截面缩放，控制在[-1,1]\n result = SCALE(composite)\n return result\n"
},
"color": "#232",
"bgcolor": "#353",
"_fullTitle": "Python代码输入"
},
{
"id": 4,
"type": "FactorAnalysisChartControl",
"pos": [
1392.713623046875,
398.421875
],
"size": [
210,
75
],
"flags": {
"uuid": "1a72cd56-5d53-4acd-b925-d25438dbeb13",
"plugin_source": "official"
},
"order": 3,
"mode": 0,
"inputs": [
{
"locked": false,
"name": "分析结果",
"type": "string",
"widget": null,
"boundingRect": [
1392.713623046875,
402.421875,
20,
20
],
"link": 4,
"hide": false,
"fieldName": "task_id"
}
],
"outputs": [
{
"locked": false,
"name": "图表绘制",
"type": "string",
"boundingRect": [
1583.713623046875,
402.421875,
20,
20
],
"links": null,
"hide": false,
"fieldName": "task_id"
},
{
"locked": false,
"name": "Result Json",
"type": "string",
"boundingRect": [
1583.713623046875,
422.421875,
20,
20
],
"links": null,
"hide": false,
"fieldName": "result_json"
}
],
"title": "因子分析结果",
"properties": {
"分析结果": "error"
},
"color": "#323",
"bgcolor": "#535",
"_fullTitle": "因子分析结果"
}
],
"links": [
[
2,
5,
0,
3,
0,
"dataframe"
],
[
4,
3,
0,
4,
0,
"string"
],
[
6,
7,
0,
5,
2,
"string"
]
],
"groups": [
],
"config": {
},
"extra": {
"ds": {
"scale": 1,
"offset": [
-94.79583740234375,
-111.45843505859375
]
}
},
"version": 0.4
},
"nodes": [
{
"uuid": "5e2b63bd-8731-4c15-adce-5b4661bb14ad",
"title": "综合因子构建节点",
"name": "FactorBuildProControl",
"type": "FactorBuildProControl",
"litegraph_id": 5,
"positionX": 764.1927490234375,
"positionY": 393.6250915527344,
"width": 210,
"height": 179,
"static_input_data": {
"start_date": "20240101",
"end_date": "20251201",
"code": "",
"market": "股票",
"type": "Python",
"direction": "正向"
},
"model_path": "",
"output_db_id": null
},
{
"uuid": "fa9b4ba4-4ab2-42f1-b3dd-046e2f3b88b1",
"title": "因子分析",
"name": "FactorAnalysisControl",
"type": "FactorAnalysisControl",
"litegraph_id": 3,
"positionX": 1075.444091796875,
"positionY": 400.562744140625,
"width": 210,
"height": 142,
"static_input_data": {
"adjustment_cycle": "1",
"group_number": "5",
"factor_direction": "0"
},
"model_path": "",
"output_db_id": null
},
{
"uuid": "b393b3ca-644d-4e74-98cb-5be490cb81e3",
"title": "Python代码输入",
"name": "CodeControl",
"type": "CodeControl",
"litegraph_id": 7,
"positionX": 463.3883056640625,
"positionY": 402.9967346191406,
"width": 210,
"height": 63,
"static_input_data": {
"code": "from panda_factor import *\n\n\nclass VolumeCompositeFactor(Factor):\n def calculate(self, factors):\n volume = factors['volume']\n close = factors['close']\n\n # 1）基础量能：相对20日平均成交量（放量）\n vol_ma20 = MA(volume, 20)\n # 防止除零\n vol_ma20_safe = IF(vol_ma20 == 0, 1, vol_ma20)\n vol_ratio_20 = volume / vol_ma20_safe\n\n # 2）量能趋势：最近20日成交量斜率（线性回归斜率，越大代表放量趋势越明显）\n vol_slope_20 = SLOPE(volume, 20)\n\n # 3）价量配合：近20日收益与成交量的相关性（价量齐升/齐跌的趋势）\n ret_1 = RETURNS(close, 1)\n price_vol_corr_20 = CORRELATION(ret_1, volume, 20)\n\n # 4）量能稳定性：近20日成交量波动率（波动越大越不稳定，取负向）\n vol_std_20 = STDDEV(volume, 20)\n vol_stability = -vol_std_20\n\n # 5）各部分截面标准化\n s_vol_ratio = ZSCORE(vol_ratio_20)\n s_vol_slope = ZSCORE(vol_slope_20)\n s_price_vol_corr = ZSCORE(price_vol_corr_20)\n s_vol_stability = ZSCORE(vol_stability)\n\n # 6）综合成交量因子：更偏重放量与趋势，对稳定性做惩罚\n composite = (\n 0.4 * s_vol_ratio +\n 0.3 * s_vol_slope +\n 0.2 * s_price_vol_corr +\n 0.1 * s_vol_stability\n )\n\n # 7）最终再做一次截面缩放，控制在[-1,1]\n result = SCALE(composite)\n return result\n"
},
"model_path": "",
"output_db_id": null
},
{
"uuid": "1a72cd56-5d53-4acd-b925-d25438dbeb13",
"title": "因子分析结果",
"name": "FactorAnalysisChartControl",
"type": "FactorAnalysisChartControl",
"litegraph_id": 4,
"positionX": 1392.713623046875,
"positionY": 398.421875,
"width": 210,
"height": 75,
"static_input_data": {
"task_id": "error"
},
"model_path": "",
"output_db_id": null
}
],
"links": [
{
"uuid": "f2b4dfd7-0cec-4264-a954-f8018ecdee9d",
"litegraph_id": 5,
"status": 1,
"previous_node_uuid": "5e2b63bd-8731-4c15-adce-5b4661bb14ad",
"next_node_uuid": "fa9b4ba4-4ab2-42f1-b3dd-046e2f3b88b1",
"output_field_name": "df_factor",
"input_field_name": "factor"
},
{
"uuid": "e1684b23-cd2e-4949-9c71-39865decc752",
"litegraph_id": 3,
"status": 1,
"previous_node_uuid": "fa9b4ba4-4ab2-42f1-b3dd-046e2f3b88b1",
"next_node_uuid": "1a72cd56-5d53-4acd-b925-d25438dbeb13",
"output_field_name": "task_id",
"input_field_name": "task_id"
},
{
"uuid": "e5328032-5457-456e-a993-c14987cbe9e5",
"litegraph_id": 7,
"status": 1,
"previous_node_uuid": "b393b3ca-644d-4e74-98cb-5be490cb81e3",
"next_node_uuid": "5e2b63bd-8731-4c15-adce-5b4661bb14ad",
"output_field_name": "code",
"input_field_name": "code"
}
],
"id": "695a37b558d90233bc1a5999"
}
不理解这里分组是怎样分的
